Y01

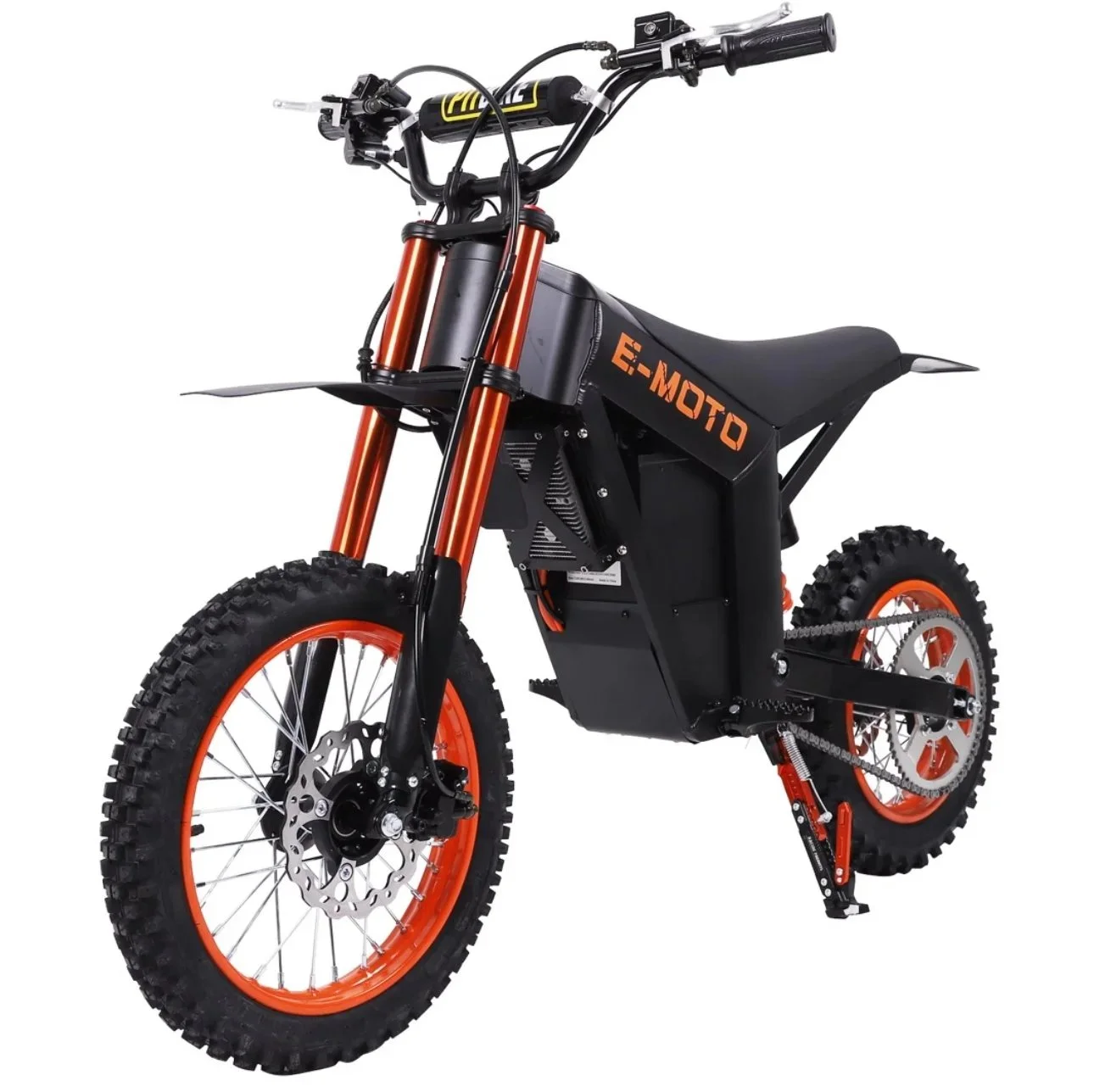

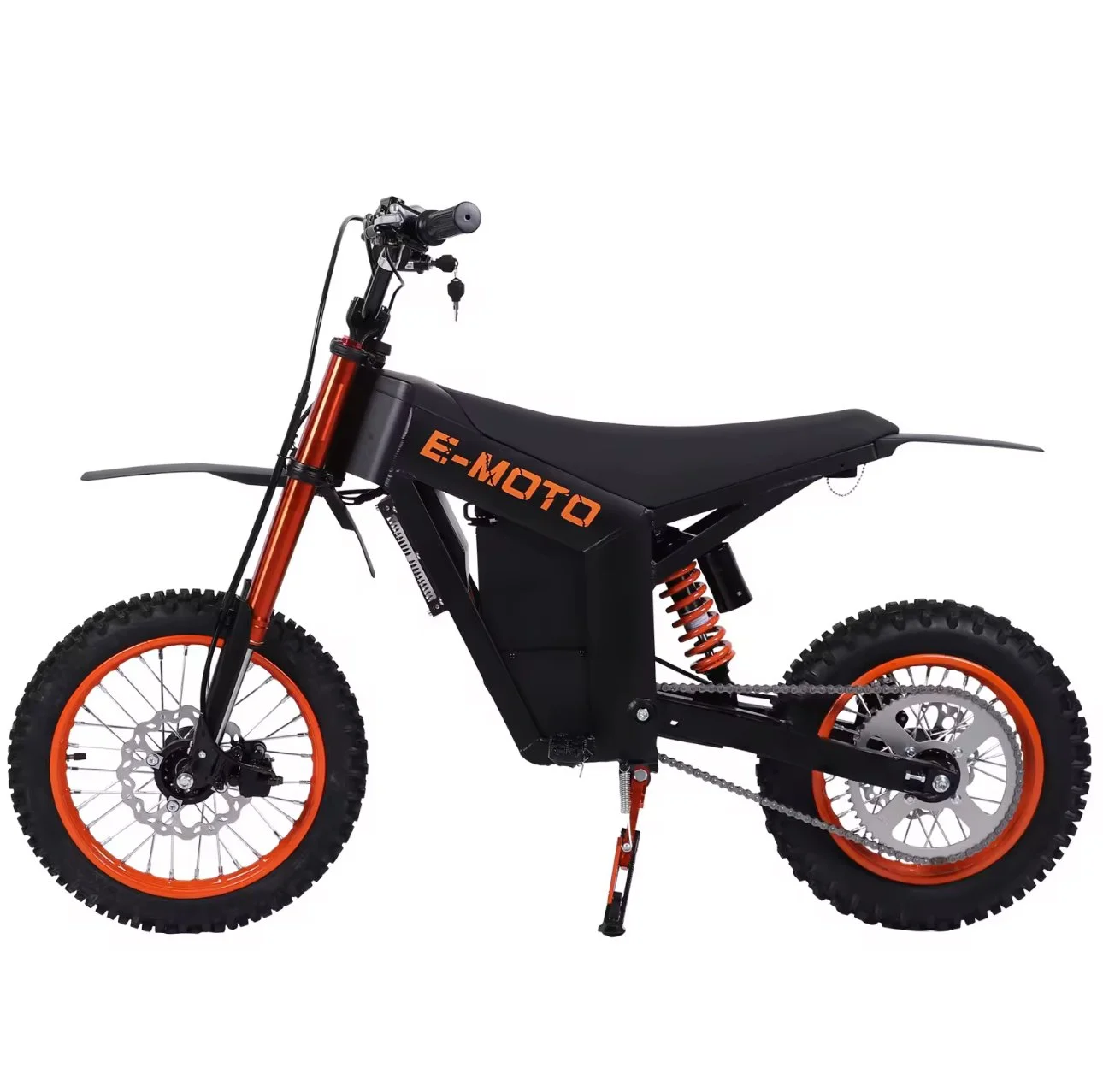

The Y01 Electric Bike is a robust and feature-rich electric motorcycle designed for both urban commuting and light off-road adventures. It boasts a durable aluminium alloy frame and offers a comfortable riding experience with its expanded dimensions of 1510mm x 730mm x 990mm. Weighing in at 47.5 kg (net weight), it provides a stable ride. Powering the Y01 is a centre-mounted motor with a rated power of 1.5KW and a rated voltage of 48V. This motor delivers a rated torque of 30NM and a peak torque of 50NM, allowing for a top speed of 55 KM/H. The bike features three-speed adjustment and an impressive climbing ability of 15 degrees. The 48V, 20.8AH lithium battery provides a battery life of 45 KM on a single charge, which takes approximately 8 hours to fully replenish. The battery utilises 18860-2600 cells in a series/parallel configuration and is managed by a 70A controller. A temperature control sensor is integrated into the system for optimal performance and safety.

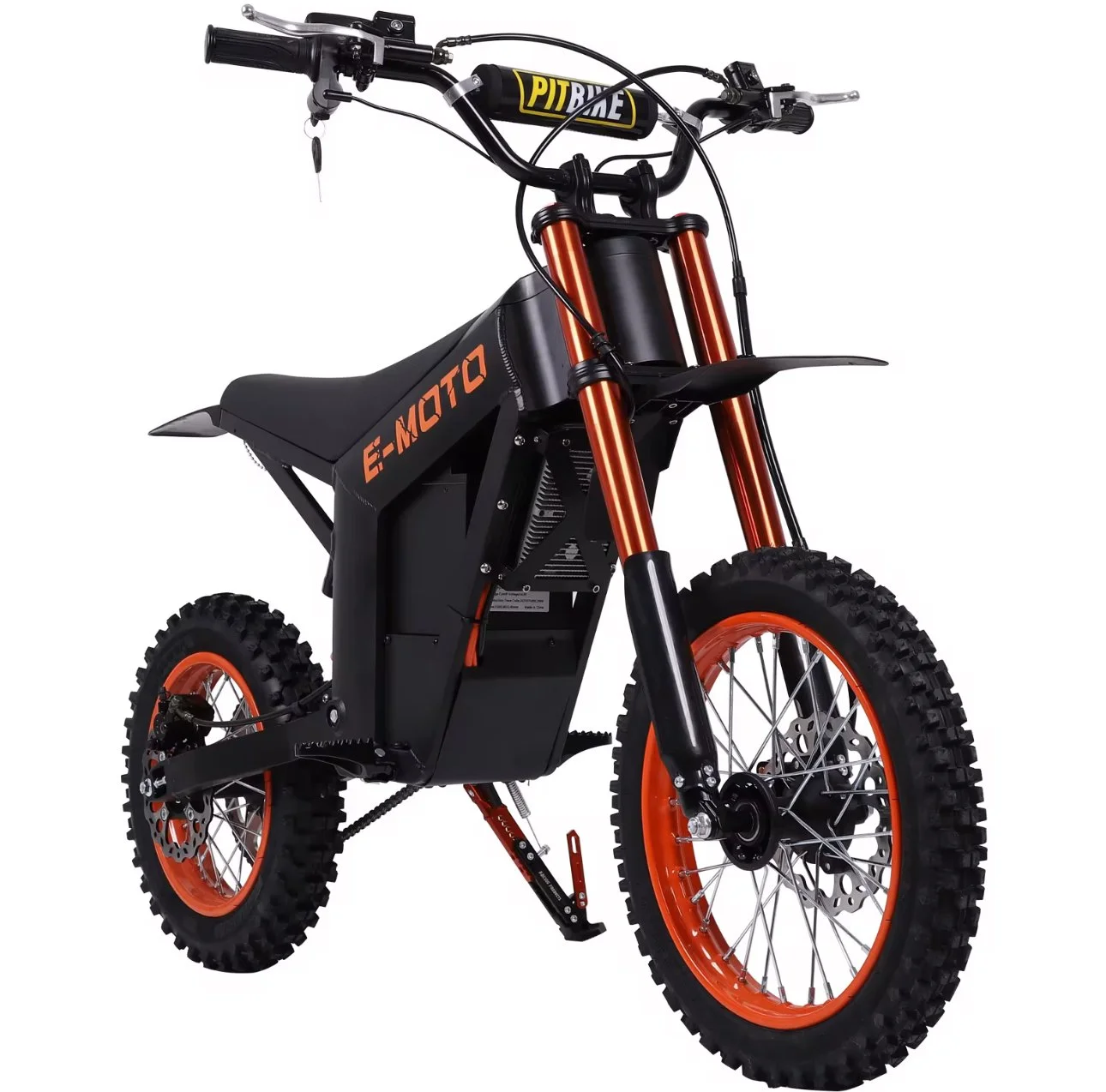

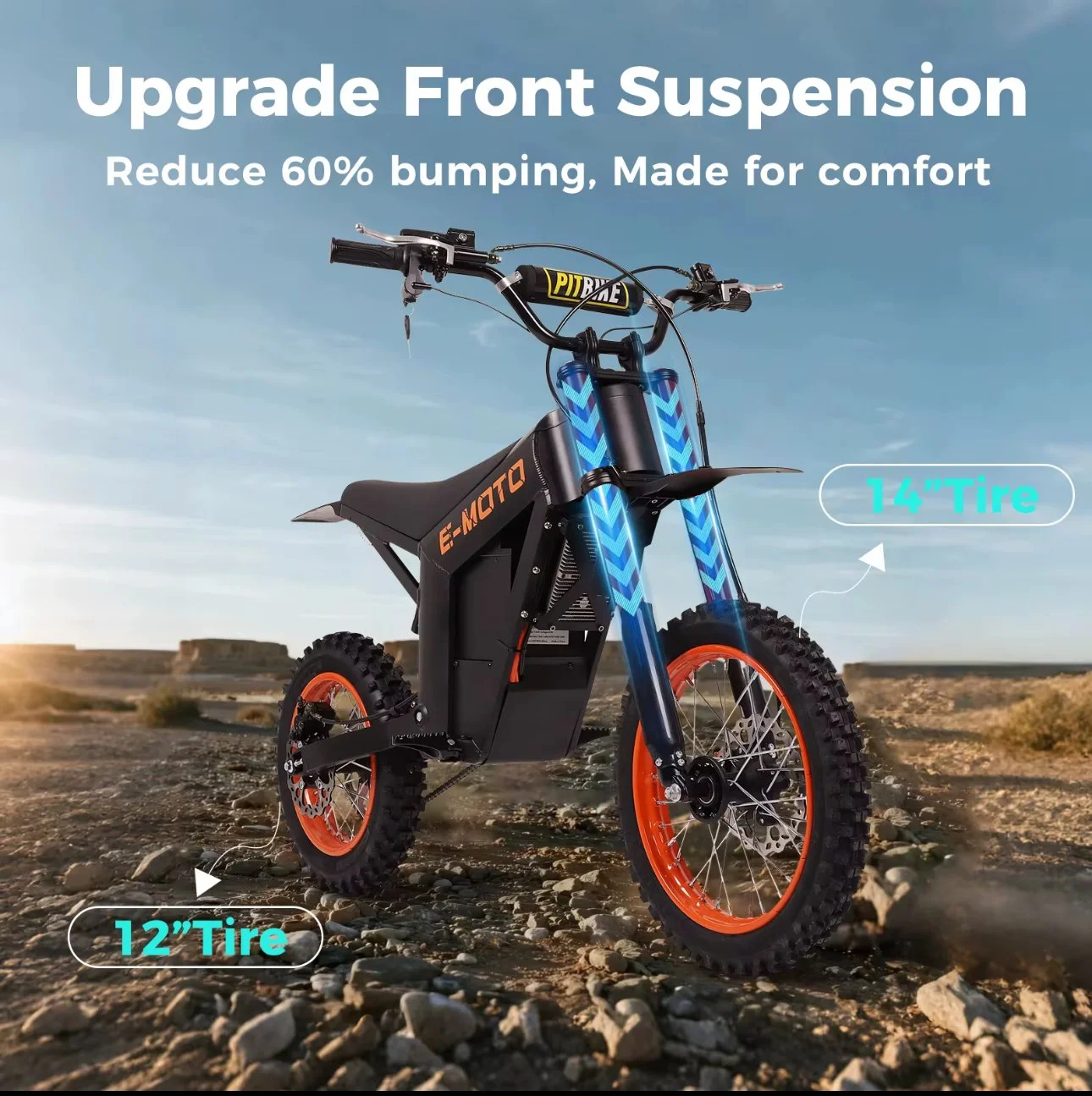

Riding comfort and safety are prioritised with a hydraulic front shock absorber offering 14 cm of stroke distance and a spring rear shock absorber with 4 cm of stroke distance. Stopping power comes from a reliable oil brake + disc brake system. The bike is equipped with a 14-inch front wheel and a 12-inch rear wheel. The handle length is 73 CM, and the seat height from the ground is 72.5 CM, with a minimum ground clearance of 26.5 CM. The electric motorcycle wheelbase is 475 MM and the heart of teeth is 46. The charger provides a maximum output voltage of 54.6V. The packaging size for shipping is 1276mm x 276mm x 745mm.
